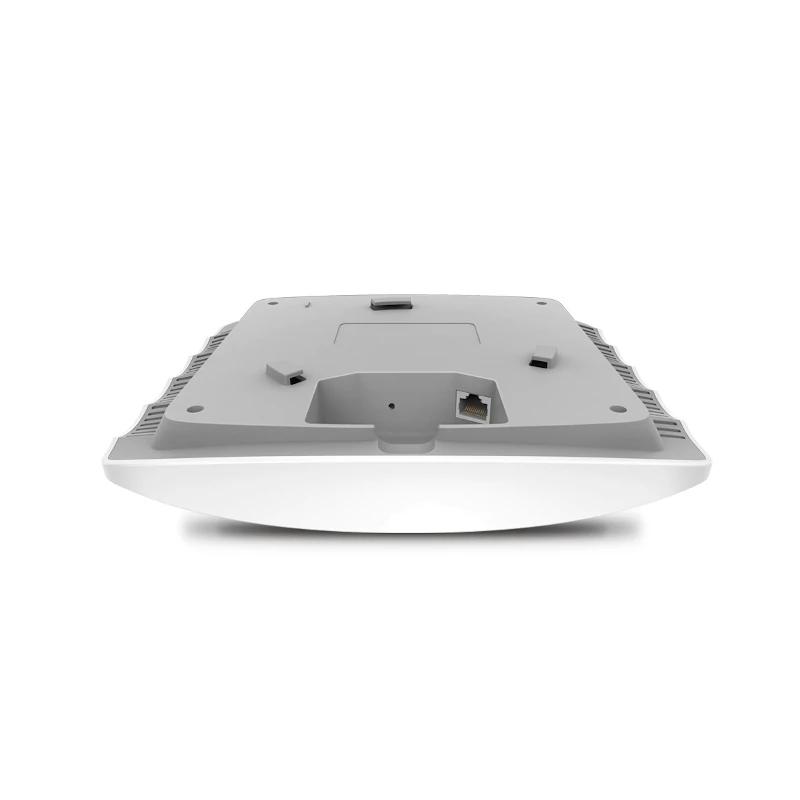

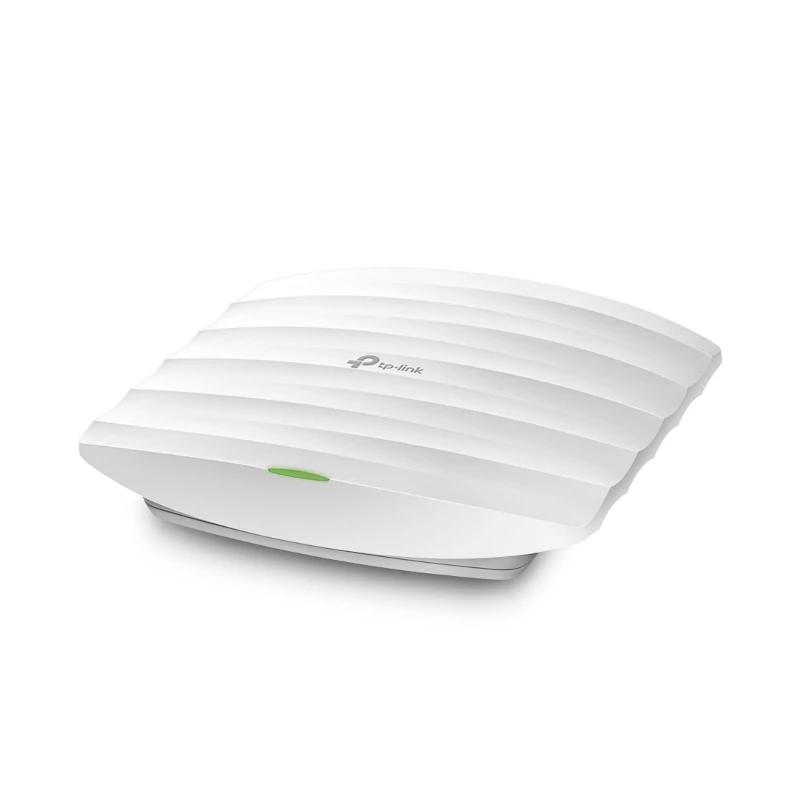

Marca

• Tp-link

Modelo

• Eap223

Características Hardware

• - Interface: Gigabit Ethernet (rj-45) 1 X Puerto (support Ieee802.3af/at Poe And Passive Poe)
• - Physical Security Lock
• - Fuente De Alimentación:
• 802.3af/at Poe
• 48v Passive Poe (+4,5pins; -7,8pins. Adaptador De Corriente No Incluido)
• - Dimensiones: 205.5 × 181.5 × 37.1 Mm
• - Antenna Type 3 Internal Omni:
• 2.4 Ghz: 4 Dbi
• 5 Ghz: 5 Dbi
• - Montaje De Techo/ Pared (kits Incluidos)

Características Inalámbricas

• - Wireless Standards: Ieee 802.11ac/n/g/b/a
• - Signal Rate:
• 5 Ghz:up To 867 Mbps
• 2.4 Ghz:up To 450 Mbps
• - Wireless Functions:
• Multiple Ssids (hasta 15 Ssids, 8 Para 2.4ghz Bandas, 7 Para 5ghz Bandas)
• Enable/disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (adjust Transmit Power On Dbm)
• Qos(wmm)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Mu-mimo
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics Based On Ssid/ap/client
• - Wireless Security:
• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• Ssid To Vlan Mapping
• Rogue Ap Detection
• 802.1x Support

Características De Gestión

• - Omada App
• - Centralized Management
• Omada Hardware Controller Oc300
• Omada Hardware Controller Oc200
• Omada Software Controller
• Omada Cloud-based Controller
• - Cloud Access Yes, Through
• Oc300
• Oc200
• Omada Software Controller
• Omada Cloud-based Controller
• - Email Alerts
• - Management Mac Access Control
• - System Logging Local/remote Syslog Local/remote Syslog
• - L3 Management
• - Multi-site Management
• - Management Vlan
• - Zero-touch Provisioning

Garantía

• Tres Años
