Procesador

• Lga1851 Socket: Support For Intel® Core- Ultra Processors
• L3 Cache Varies With Cpu
• * Please Refer To -cpu Support List- For More Information.

Chipset

• Intel® Z890 Express Chipset

Memoria

• Support For Ddr5 8800(o.c) /8600(o.c) / 8400(o.c) /8266(o.c) / 8200(o.c) / 8000(o.c) / 7950(o.c) / 7900(o.c) / 7800(o.c) / 7600(o.c.) / 7400(o.c.) / 7200(o.c.) / 7000(o.c.) / 6800(o.c.) / 6600(o.c.) / 6400 / 6200 / 6000 / 5800 / 5600mt/s Memory Modules.
• 4 X Ddr5 Dimm Sockets Supporting Up To 256 Gb (64 Gb Single Dimm Capacity) Of System Memory
• Dual Channel Memory Architecture
• Support For Ecc Un-buffered Dimm 1rx8/2rx8 Memory Modules (operate In Non-ecc Mode)
• Support For Non-ecc Un-buffered Dimm 1rx8/2rx8/1rx16 Memory Modules
• Support For Extreme Memory Profile (xmp) Memory Modules
• Support Cudimm Memory Module
• (the Cpu And Memory Configuration May Affect The Supported Memory Types, Data Rate (speed), And Number Of Dram Modules, Please Refer To -memory Support List- For More Information.)

Gráfica Integrada

• Integrated Graphics Processor-intel® Hd Graphics Support:
• - 1 X Usb4® Usb Type-c® Port, Supporting Usb4 And Displayport Video Outputs And A Maximum Resolution Of 3840x2160@144 Hz
• * Support For Displayport 2.1 Version
• - 1 X Displayport, Supporting A Maximum Resolution Of 3840x2160@144 Hz
• * Support For Displayport 2.1 Version
• - 1 X Front Hdmi Port, Supporting A Maximum Resolution Of 1920x1080@30 Hz
• * Support For Hdmi 1.4 Version
• (graphics Specifications May Vary Depending On Cpu Support.)
• Support For Up To 3 Displays At The Same Time

Audio

• Realtek® Audio Codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-channel Audio, Access The Audio Software For Audio Settings.
• Support For S/pdif Out

Lan

• Realtek® 2.5gbe Lan Chip (2.5 Gbps/1 Gbps/100 Mbps)
• Módulo De Comunicaciones Inalámbricas
• Mediatek Wi-fi 7 Mt7925 (pcb Rev. 1.0)
• - 802.11a, B, G, N, Ac, Ax, Be, Supporting 2.4/5/6 Ghz Carrier Frequency Bands
• - Bluetooth 5.4
• - Support For 11be 160mhz Wireless Standard
• Realtek® Wi-fi 7 Rtl8922ae (pcb Rev. 1.1)
• - 802.11a, B, G, N, Ac, Ax, Be, Supporting 2.4/5/6 Ghz Carrier Frequency Bands
• - Bluetooth 5.4
• - Support For 11be 160mhz Wireless Standard
• (actual Data Rate May Vary Depending On Environment And Equipment.)
• * Wi-fi 7 Features Require Windows 11 Sv3 To Function Properly. (there Is No Support Driver For Windows 10.)
• ** Wi-fi 7 Channels On 6 Ghz Band Availability Depends On Individual Country,s Regulations.

Zócalos De Expansión

• Cpu:
• - 1 X Pci Express X16 Slot, Supporting Pcie 5.0 And Running At X16 (pciex16)
• * The Pciex16 Slot Can Only Support A Graphics Card Or An Nvme Ssd. If Only One Graphics Card Is To Be Installed, Be Sure To Install It In The Pciex16 Slot.
• Chipset:
• - 2 X Pci Express X16 Slots, Supporting Pcie 4.0 And Running At X4 (pciex4_1/2)
• Interfaz De Almacenamiento
• Cpu:
• - 1 X M.2 Connector (socket 3, M Key, Type 25110/22110/2580/2280 Pcie 5.0 X4/x2 Ssd Support) (m2a_cpu)
• - 1 X M.2 Connector (socket 3, M Key, Type 22110/2280 Pcie 4.0 X4/x2 Ssd Support) (m2b_cpu)
• Chipset:
• - 1 X M.2 Connector (socket 3, M Key, Type 22110/2280 Pcie 4.0 X4/x2 Ssd Support) (m2q_sb)
• - 1 X M.2 Connector (socket 3, M Key, Type 22110/2280 Sata And Pcie 4.0 X4/x2 Ssd Support) (m2m_sb)
• - 4 X Sata 6gb/s Connectors
• Raid 0, Raid 1, Raid 5, And Raid 10 Support For Nvme Ssd Storage Devices
• Raid 0, Raid 1, Raid 5, And Raid 10 Support For Sata Storage Devices

Usb

• Cpu:
• - 1 X Usb4® Usb Type-c® Port On The Back Panel
• Chipset:
• - 1 X Usb Type-c® Port With Usb 3.2 Gen 2 Support, Available Through The Internal Usb Header
• - 2 X Usb 3.2 Gen 2 Type-a Ports (red) On The Back Panel
• - 5 X Usb 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header)
• Chipset+2 Usb 2.0 Hubs:
• - 8 X Usb 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal Usb Headers)

Conectores Internos E/s

• 1 X 24-pin Atx Main Power Connector
• 2 X 8-pin Atx 12v Power Connectors
• 1 X Cpu Fan Header
• 1 X Cpu Fan/water Cooling Pump Header
• 3 X System Fan Headers
• 1 X System Fan/water Cooling Pump Header
• 3 X Addressable Rgb Gen2 Led Strip Headers
• 1 X Rgb Led Strip Header
• 4 X M.2 Socket 3 Connectors
• 4 X Sata 6gb/s Connectors
• 1 X Front Panel Header
• 1 X Front Panel Audio Header
• 1 X Usb Type-c® Header, With Usb 3.2 Gen 2 Support
• 1 X Usb 3.2 Gen 1 Header
• 2 X Usb 2.0/1.1 Headers
• 2 X Thunderbolt- Add-in Card Connectors
• 1 X Trusted Platform Module Header (for The Gc-tpm2.0 Spi/gc-tpm2.0 Spi 2.0/gc-tpm2.0 Spi V2 Module Only)
• 1 X Hdmi Port (note)
• 1 X Power Button
• 1 X Q-flash Plus Button
• 1 X Reset Button
• 1 X Reset Jumper
• 1 X Clear Cmos Jumper
• (note) Actual Support May Vary By Cpu.

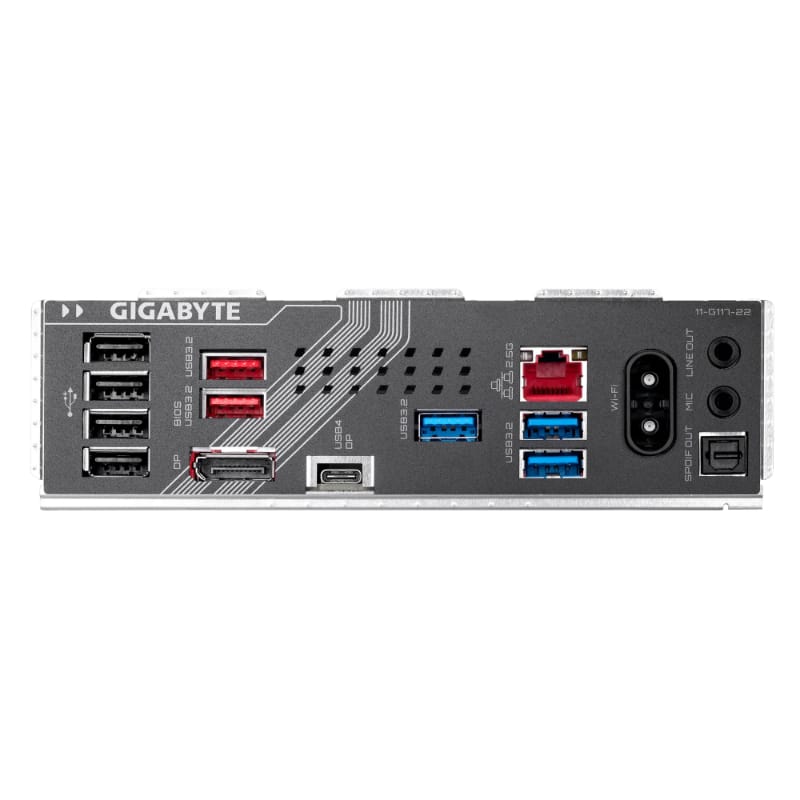

Panel E/s Trasero

• 1 X Usb4® Usb Type-c® Port (displayport (note))
• 2 X Usb 3.2 Gen 2 Type-a Ports (red)
• 3 X Usb 3.2 Gen 1 Ports
• 4 X Usb 2.0/1.1 Ports
• 1 X Displayport (note)
• 2 X Antenna Connectors (2t2r)
• 1 X Rj-45 Port
• 1 X Optical S/pdif Out Connector
• 2 X Audio Jacks
• (note) Actual Support May Vary By Cpu.

Controlador E/s

• Ite® I/o Controller Chip

Bios

• 1 X 256 Mbit Flash
• Use Of Licensed Ami Uefi Bios
• Pnp 1.0a, Dmi 2.7, Wfm 2.0, Sm Bios 2.7, Acpi 5.0

Formato

• Atx Form Factor; 30.5cm X 24.4cm

Garantía

• Tres Años
