Procesador

• Amd Socket Am5, Support For:
• Amd Ryzen- 9000 Series Processors/
• Amd Ryzen- 8000 Series Processors/
• Amd Ryzen- 7000 Series Processors
• (go To Gigabyte,s Website For The Latest Cpu Support List.)

Chipset

• Amd X870

Memoria

• Support For Ddr5 8200(oc) / 8000(oc) / 7800(oc) / 7600(oc) / 7200(oc) / 7000(oc) / 6800(oc) / 6666(oc) / 6600(oc) / 6400(oc) / 6200(oc) / 6000(oc) / 5600(oc) / 5200 / 4800 / 4400 Mt/s Memory Modules
• 4 X Ddr5 Dimm Sockets Supporting Up To 256 Gb (64 Gb Single Dimm Capacity) Of System Memory
• Dual Channel Memory Architecture
• Support For Non-ecc Un-buffered Dimm 1rx8/2rx8/1rx16 Memory Modules
• Support For Amd Extended Profiles For Overclocking (amd Expo-) And Extreme Memory Profile (xmp) Memory Modules
• (the Cpu And Memory Configuration May Affect The Supported Memory Types, Data Rate (speed), And Number Of Dram Modules, Please Refer To -memory Support List- On Gigabyte,s Website For More Information.)

Gráfica Integrada

• Integrated Graphics Processor With Amd Radeon- Graphics Support+asmedia Usb4® Controller:
• - 2 X Usb4® Usb Type-c® Ports, Supporting Usb4 And Displayport Video Outputs And A Maximum Resolution Of 3840x2160@240 Hz
• * Support For Displayport 1.4 Version And Hdr.
• Integrated Graphics Processor With Amd Radeon- Graphics Support:
• - 1 X Hdmi Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
• * Support For Hdmi 2.1 Version, Hdcp 2.3, And Hdr.
• ** Support Native Hdmi 2.1 Tmds Compatible Ports.
• (graphics Specifications May Vary Depending On Cpu Support.)

Audio

• Realtek® Audio Codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-channel Audio, Access The Audio Software For Audio Settings.

Lan

• Realtek® 2.5gbe Lan Chip (2.5 Gbps/1 Gbps/100 Mbps)
• Módulo De Comunicaciones Inalámbricas
• Mediatek Wi-fi 7 Mt7925 (pcb Rev. 1.0)
• - 802.11a, B, G, N, Ac, Ax, Be, Supporting 2.4/5/6 Ghz Carrier Frequency Bands
• - Bluetooth 5.4
• - Support For 11be 160mhz Wireless Standard
• Realtek® Wi-fi 7 Rtl8922ae (pcb Rev. 1.1)
• - 802.11a, B, G, N, Ac, Ax, Be, Supporting 2.4/5/6 Ghz Carrier Frequency Bands
• - Bluetooth 5.4
• - Support For 11be 160mhz Wireless Standard
• (actual Data Rate May Vary Depending On Environment And Equipment.)
• * Wi-fi 7 Features Require Windows 11 Sv3 To Function Properly. (there Is No Support Driver For Windows 10.)
• ** Wi-fi 7 Channels On 6 Ghz Band Availability Depends On Individual Country,s Regulations.

Zócalos De Expansión

• 1 X Pci Express X16 Slot (pciex16), Integrated In The Cpu:
• Amd Ryzen- 9000/7000 Series Processors Support Pcie 5.0 X16 Mode
• Amd Ryzen- 8000 Series-phoenix 1 Processors Support Pcie 4.0 X8 Mode
• Amd Ryzen- 8000 Series-phoenix 2 Processors Support Pcie 4.0 X4 Mode
• * The Pciex16 Slot Can Only Support A Graphics Card Or An Nvme Ssd. If Only One Graphics Card Is To Be Installed, Be Sure To Install It In The Pciex16 Slot.
• Chipset:
• - 2 X Pci Express X16 Slots, Supporting Pcie 3.0 And Running At X1 (pciex1_1/2)

Interfaz De Almacenamiento

• 1 X M.2 Connector (m2a_cpu), Integrated In The Cpu, Supporting Socket 3, M Key, Type 25110/22110/2580/2280 Ssds:
• Amd Ryzen- 9000/7000 Series Processors Support Pcie 5.0 X4/x2 Ssds
• Amd Ryzen- 8000 Series- Phoenix 1 Processors Support Pcie 4.0 X4/x2 Ssds
• Amd Ryzen- 8000 Series- Phoenix 2 Processors Support Pcie 4.0 X4/x2 Ssds
• 1 X M.2 Connector (m2c_sb), Integrated In The Chipset, Supporting Socket 3, M Key, Type 25110/22110/2580/2280 Pcie 4.0 X2 Ssds
• 1 X M.2 Connector (m2b_sb), Integrated In The Chipset, Supporting Socket 3, M Key, Type 25110/22110/2580/2280 Pcie 4.0 X4/x2 Ssds
• * The M2b_sb Connector Shares Bandwidth With The M2c_sb Connector. The M2c_sb Connector Will Become Unavailable When An Pcie 4.0 X4 Ssd Is Installed In The M2b_sb Connector.
• 4 X Sata 6gb/s Connectors
• Raid 0, Raid 1, Raid 5, And Raid 10 Support For Nvme Ssd Storage Devices
• * Raid 5 Is Only Available On Amd Ryzen- 9000 Series Processors.
• Raid 0, Raid 1, And Raid 10 Support For Sata Storage Devices

Usb

• Cpu+asmedia Usb4® Controller:
• - 2 X Usb4® Usb Type-c® Ports On The Back Panel
• Cpu:
• - 1 X Usb 3.2 Gen 2 Type-a Port (red) On The Back Panel
• - 1 X Usb 3.2 Gen 1 Port On The Back Panel
• Cpu+usb 2.0 Hub:
• - 4 X Usb 2.0/1.1 Ports On The Back Panel
• Chipset:
• - 1 X Usb Type-c® Port With Usb 3.2 Gen 2x2 Support, Available Through The Internal Usb Header
• - 4 X Usb 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header)
• - 4 X Usb 2.0/1.1 Ports Available Through The Internal Usb Headers

Conectores Internos E/s

• 1 X 24-pin Atx Main Power Connector
• 1 X 8-pin Atx 12v Power Connector
• 1 X 4-pin Atx 12v Power Connector
• 1 X Cpu Fan Header
• 1 X Cpu Fan/water Cooling Pump Header
• 4 X System Fan Headers
• 3 X Addressable Rgb Gen2 Led Strip Headers
• 1 X Rgb Led Strip Header
• 4 X Sata 6gb/s Connectors
• 3 X M.2 Socket 3 Connectors
• 1 X Front Panel Header
• 1 X Front Panel Audio Header
• 1 X Usb Type-c® Header, With Usb 3.2 Gen 2x2 Support
• 1 X Usb 3.2 Gen 1 Header
• 2 X Usb 2.0/1.1 Headers
• 1 X Trusted Platform Module Header (for The Gc-tpm2.0 Spi/gc-tpm2.0 Spi 2.0/gc-tpm2.0 Spi V2 Module Only)
• 1 X Power Button
• 1 X Reset Button
• 1 X Reset Jumper
• 1 X Clear Cmos Jumper

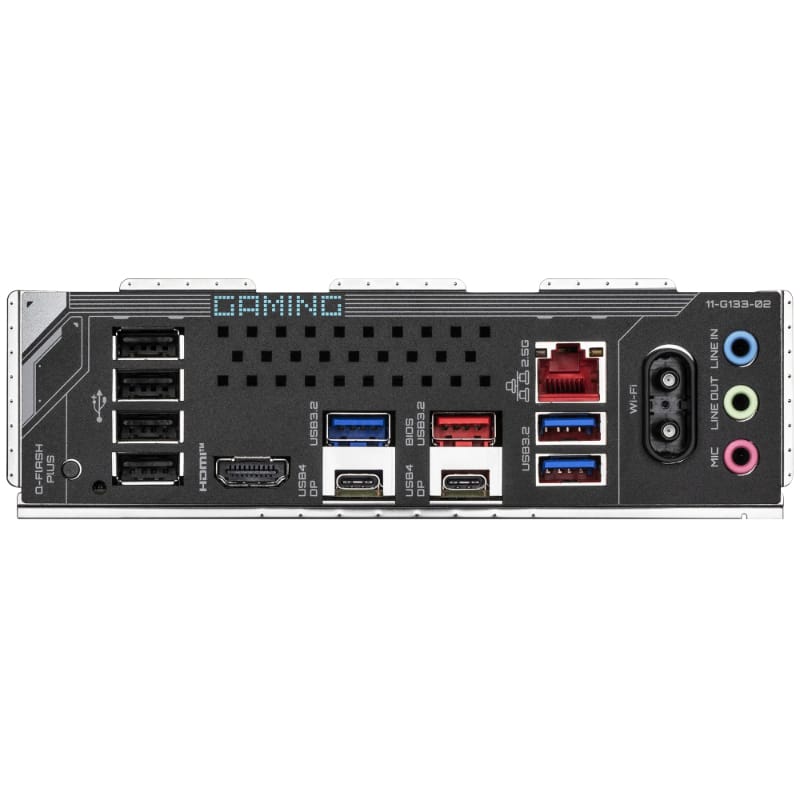

Panel E/s Trasero

• 1 X Q-flash Plus Button
• 2 X Antenna Connectors (2t2r)
• 1 X Hdmi Port(note)
• 2 X Usb4® Usb Type-c® Ports (displayport*)
• 1 X Usb 3.2 Gen 2 Type-a Port (red)
• 3 X Usb 3.2 Gen 1 Ports
• 4 X Usb 2.0/1.1 Ports
• 1 X Rj-45 Port
• 3 X Audio Jacks
• * Actual Support May Vary By Cpu.

Controlador E/s

• Ite® I/o Controller Chip

Bios

• 1 X 256 Mbit Flash
• Use Of Licensed Ami Uefi Bios
• Pnp 1.0a, Dmi 2.7, Wfm 2.0, Sm Bios 2.7, Acpi 5.0

Formato

• Atx Form Factor; 30.5cm X 24.4cm

Garantía

• Tres Años
