- Procesador

• - Lga1700 Socket: Support For The 13th And 12th Generation Intel® Core-, Pentium® Gold And Celeron® Processors
• - L3 Cache Varies With Cpu
• - (please Refer -cpu Support List- For More Information.)

- Chipset

• - Intel® B760 Express Chipset

- Memoria

• - Support For Ddr5 7600(o.c.) /7400(o.c.) /7200(o.c.) /7000(o.c.) /6800(o.c.) /6600(o.c.) / 6400(o.c.) / 6200(o.c.) / 6000(o.c.) / 5800(o.c.) / 5600(o.c.) / 5400(o.c.) / 5200(o.c.) / 4800 / 4000 Mt/s Memory Modules
• - 4 X Ddr5 Dimm Sockets Supporting Up To 192 Gb (48 Gb Single Dimm Capacity) Of System Memory
• - Dual Channel Memory Architecture
• - Support For Ecc Un-buffered Dimm 1rx8/2rx8 Memory Modules (operate In Non-ecc Mode)
• - Support For Non-ecc Un-buffered Dimm 1rx8/2rx8/1rx16 Memory Modules
• - Support For Extreme Memory Profile (xmp) Memory Modules
• - (the Cpu And Memory Configuration May Affect The Supported Memory Types, Data Rate (speed), And Number Of Dram Modules, Please Refer To -memory Support List- For More Information.)

- Gráfica Integrada

• - Integrated Graphics Processor-intel® Hd Graphics Support:
• - 1 X D-sub Port, Supporting A Maximum Resolution Of 1920x1200@60 Hz Km
• - 1 X Hdmi Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
• - * Support For Hdmi 2.0 Version And Hdcp 2.3.
• - 1 X Displayport, Supporting A Maximum Resolution Of 4096x2304@60 Hz
• - * Support For Displayport 1.2 Version And Hdcp 2.3
• - 1 X Displayport, Supporting A Maximum Resolution Of 4096x2304@60 Hz
• - * Support For Displayport 1.2 Version.
• - (graphics Specifications May Vary Depending On Cpu Support.)
• - Support For Up To Quad-display At The Same Time

- Audio

• - Realtek® Audio Codec
• - High Definition Audio
• - 2/4/5.1/7.1-channel
• - * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-channel Audio, Access The Audio Software For Audio Settings.
• - Support For S/pdif Out

- Lan

• - Realtek® 2.5gbe Lan Chip (2.5 Gbps/1 Gbps/100 Mbps)

- Zócalos De Expansión

• - Cpu:
• - 1 X Pci Express X16 Slot, Supporting Pcie 4.0 And Running At X16
• - Chipset:
• - 2 X Pci Express X1 Slots, Supporting Pcie 3.0 And Running At X1

- Interfaz De Almacenamiento

• - Cpu:
• - 1 X M.2 Connector (socket 3, M Key, Type 2280 Pcie 4.0 X4/x2 Ssd Support) (m2a_cpu)
• - Chipset:
• - 1 X M.2 Connector (socket 3, M Key, Type 2280 Pcie 4.0 X4/x2 Ssd Support) (m2p_sb)
• - 4 X Sata 6gb/s Connectors
• - Raid 0, Raid 1, Raid 5, And Raid 10 Support For Sata Storage Devices

- Usb

• - Chipset:
• - 1 X Usb Type-c® Port On The Back Panel, With Usb 3.2 Gen 2 Support
• - 5 X Usb 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header)
• - 2 X Usb 2.0/1.1 Ports On The Back Panel
• - Chipset+2 Usb 2.0 Hubs:
• - 4 X Usb 2.0/1.1 Ports Available Through The Internal Usb Headers

- Conectores Internos E/s

• - 1 X 24-pin Atx Main Power Connector
• - 1 X 8-pin Atx 12v Power Connector
• - 1 X Cpu Fan Header
• - 3 X System Fan Headers
• - 1 X Addressable Led Strip Header
• - 1 X Rgb Led Strip Header
• - 2 X M.2 Socket 3 Connectors
• - 4 X Sata 6gb/s Connectors
• - 1 X Front Panel Header
• - 1 X Front Panel Audio Header
• - 1 X Usb 3.2 Gen 1 Header
• - 2 X Usb 2.0/1.1 Headers
• - 1 X Trusted Platform Module Header (for The Gc-tpm2.0 Spi/gc-tpm2.0 Spi 2.0 Module Only)
• - 1 X Serial Port Header
• - 1 X Parallel Port Header
• - 1 X S/pdif Out Header
• - 1 X Q-flash Plus Button
• - 1 X Reset Jumper
• - 1 X Clear Cmos Jumper

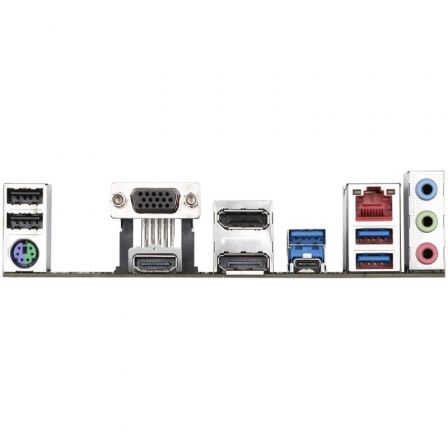

- Panel E/s Trasero

• - 2 X Usb 2.0/1.1 Ports
• - 1 X Ps/2 Keyboard/mouse Port
• - 1 X D-sub Port
• - 1 X Hdmi Port
• - 2 X Displayports
• - 3 X Usb 3.2 Gen 1 Ports
• - 1 X Usb Type-c® Port, With Usb 3.2 Gen 2 Support
• - 1 X Rj-45 Port
• - 3 X Audio Jacks

- Controlador E/s

• - Ite® I/o Controller Chip

- Monitorización Hardware

• - Voltage Detection
• - Temperature Detection
• - Fan Speed Detection
• - Water Cooling Flow Rate Detection
• - Fan Fail Warning
• - Fan Speed Control
• - * Whether The Fan Speed Control Function Is Supported Will Depend On The Cooler You Install.

- Bios

• - 1 X 128 Mbit Flash
• - Use Of Licensed Ami Uefi Bios
• - Pnp 1.0a, Dmi 2.7, Wfm 2.0, Sm Bios 2.7, Acpi 5.0

- Otras Características

• - Support For Gigabyte Control Center (gcc)
• - * Available Applications In Gcc May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications.
• - Support For Q-flash
• - Support For Q-flash Plus

- Bundled Software

• - Norton® Internet Security (oem Version)
• - Lan Bandwidth Management Software

- Sistema Operativo

• - Support For Windows 11 64-bit
• - Support For Windows 10 64-bit

- Formato

• - Micro Atx Form Factor; 24.4cm X 24.4cm

Garantía

• Tres Años
