Modelo

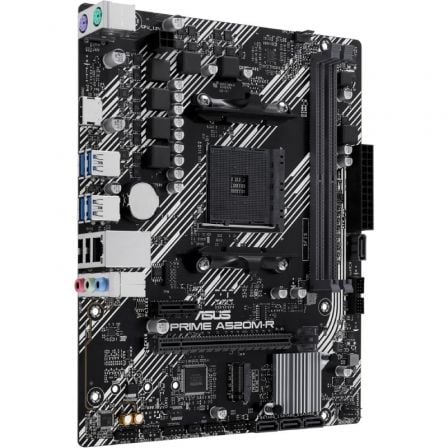

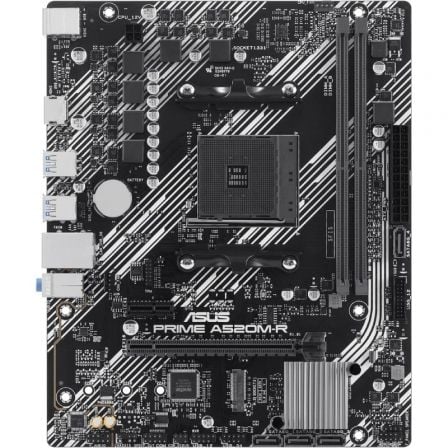

• Prime A520m-r

Cpu

• Amd Socket Am4 For Amd Ryzen- 5000 Series/ 5000 G-series/ 4000 G-series/ 3000 Series/ 3000 G-series Desktop Processors*
• * Refer To Www.asus.com For Cpu Support List.

Chipset

• Amd A520 Chipset

Memoria

• 2 X Dimm Slots, Max. 64gb, Ddr4 5100(oc)/ 4866(oc)/ 4666(oc)/ 4600(oc)/ 4466(oc)/ 4400(oc)/ 4333(oc)/ 4266(oc)/ 4200(oc)/ 4133(oc)/ 4000(oc)/ 3866(oc)/ 3733(oc)/ 3600(oc)/ 3466(oc)/ 3400(oc)/ 3333(oc)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*
• Dual Channel Memory Architecture
• * Ecc Memory (ecc Mode) Support Varies By Cpu.
• * Supported Memory Types, Data Rate (speed), And Number Of Dram Modules Vary Depending On The Cpu And Memory Configuration, For More Information Please Refer To Cpu/memory Support List Under The Support Tab Of Product Information Site Or Visit Https://www.asus.com/support/.

Gráficos

• 1 X Hdmi- Port**
• * Graphics Specifications May Vary Between Cpu Types. Please Refer To Amd Cpu Specifications.
• ** Supports 4k@60hz As Specified In Hdmi 2.1.

Ranuras De Expansión

• Amd Ryzen- 5000 Series/ 5000 G-series/ 4000 G-series/ 3000 Series/ 3000 G-series Desktop Processors
• 1 X Pcie 3.0 X16 Slot (supports X16 Mode)
• Amd A520 Chipset
• 1 X Pcie 3.0 X1 Slot
• - To Ensure Compatibility Of The Device Installed, Please Refer To Https://www.asus.com/support/ For The List Of Supported Peripherals.

Almacenamiento

• Supports 1 X M.2 Slot And 4 X Sata 6gb/s Ports*
• Amd Ryzen- 5000 Series/ 5000 G-series/ 4000 G-series/ 3000 Series/ 3000 G-series Desktop Processors
• M.2 Slot (key M), Type 2242/2260/2280 (supports Pcie 3.0 X4 & Sata Modes)
• Amd A520 Chipset
• 4 X Sata 6gb/s Ports
• * Amd Raidxpert2 Technology Supports Both Pcie Raid 0/1/10 And Sata Raid 0/1/10.

Ethernet

• 1 X Realtek 1gb Ethernet

Usb

• Rear Usb (total 6 Ports)
• 4 X Usb 5gbps Ports (4 X Type-a)
• 2 X Usb 2.0 Ports (2 X Type-a)
• Front Usb (total 6 Ports)
• 1 X Usb 5gbps Header Supports 2 Additional Usb 5gbps Ports
• 2 X Usb 2.0 Headers Support 4 Additional Usb 2.0 Ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio Codec*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports Up To 24-bit/192 Khz Playback
• Audio Features
• - Audio Shielding
• - Premium Audio Capacitors
• - Dedicated Audio Pcb Layers
• * A Chassis With An Hd Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.

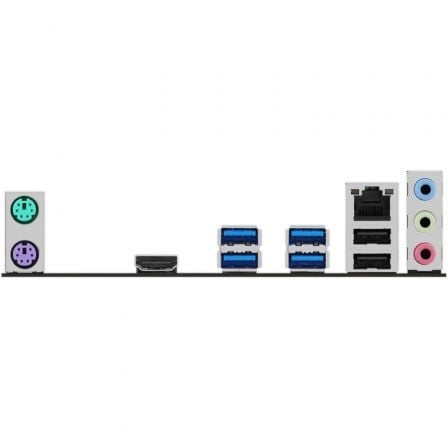

Puertos De E/s Del Panel Posterior

• 4 X Usb 5gbps Ports (4 X Type-a)
• 2 X Usb 2.0 Ports (2 X Type-a)
• 1 X Hdmi- Port
• 1 X Realtek 1gb Ethernet Port
• 3 X Audio Jacks
• 1 X Ps/2 Keyboard (purple) Port
• 1 X Ps/2 Mouse (green) Port

Conectores De E/s Internos

• Fan And Cooling Related
• 1 X 4-pin Cpu Fan Header
• 1 X 4-pin Chassis Fan Header
• Power Related
• 1 X 24-pin Main Power Connector
• 1 X 4-pin +12v Power Connector
• Storage Related
• 1 X M.2 Slot (key M)
• 4 X Sata 6gb/s Ports
• Usb
• 1 X Usb 5gbps Header Supports 2 Additional Usb 5gbps Ports
• 2 X Usb 2.0 Headers Support 4 Additional Usb 2.0 Ports
• Miscellaneous
• 1 X Clear Cmos Header
• 1 X Com Port Header
• 1 X Front Panel Audio Header (f_audio)
• 1 X S/pdif Out Header
• 1 X Speaker Header
• 1 X Spi Tpm Header (14-1pin)
• 1 X 10-1 Pin System Panel Header

Características Especiales

• Asus 5x Protection Iii
• - Digi+ Vrm
• - Languard
• - Overvoltage Protection
• - Safeslot Core
• - Stainless-steel Back I/o
• Asus Q-design
• - Q-dimm
• - Q-led Core
• - Q-slot
• Asus Thermal Solution
• - Aluminum Heatsink Design

Funciones De Software

• Asus Exclusive Software
• Armoury Crate
• Ai Suite 3
• - Performance And Power Saving Utility
• - Ez Update
• - Pc Cleaner
• Asus Cpu-z
• Norton 360 Deluxe (60 Days Free Trial)
• Winrar (40 Days Free Trial)
• Uefi Bios
• Asus Ez Diy
• - Asus Crashfree Bios 3
• - Asus Ez Flash 3
• - Asus Uefi Bios Ez Mode

Bios

• 128 Mb Flash Rom, Uefi Ami Bios

Manejabilidad

• Wol By Pme, Pxe

Accesorios

• Cables
• 2 X Sata 6gb/s Cables
• Miscellaneous
• 1 X I/o Shield
• 1 X M.2 Anchor
• Documentation
• 1 X Quick Start Guide

Sistema Operativo

• Windows® 11, Windows® 10 64-bit

Factor De Forma

• Micro-atx Form Factor
• 9.3 Inch X 7.6 Inch ( 23.6 Cm X 19.3 Cm )

Garantía

• Tres Años
